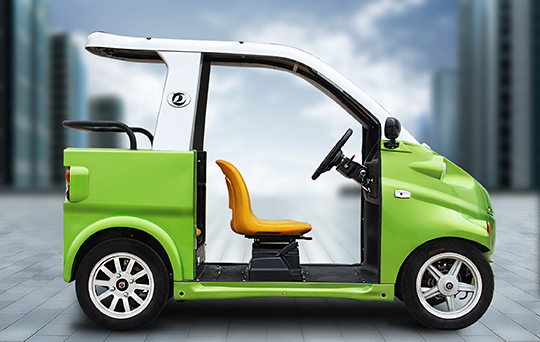

Specification : DFH-TM02 (1+1)(无门两座)
Dimensions(mm) 2288*1143*1557 Motor 60V/1.1KW
Driving mileage(km) 60 Battery 12V/38AH maintenance- free lead acid battery
Seating capacity (people) 2 Curb mass 460KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 45A 1.1KW controller
Accelerator Hanging , 5V Hall signals

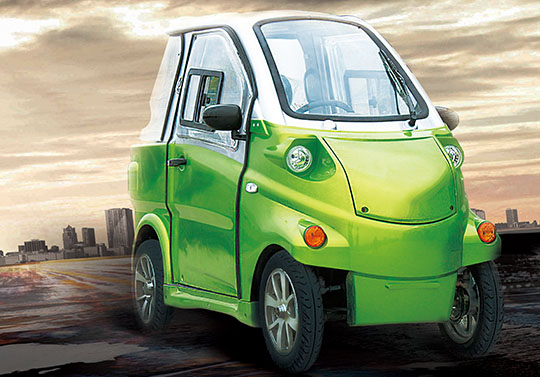

Specification : DFH-TM02 with door (1+1)（有门两座）
Dimensions(mm) 2288*1143*1557 Motor 60V/1.1KW
Driving mileage(km) 60 Battery 12V/38AH maintenance- free lead acid battery
Seating capacity (people) 2 Curb mass 460KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 45A 1.1KW controller
Accelerator Hanging , 5V Hall signals

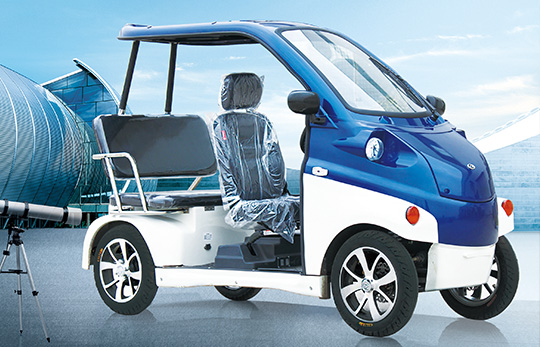

Specification : DFH-TM03(1+2) （无门三座）
Dimensions(mm) 2364*1143*1620 Motor 60V/1.1KW
Driving mileage(km) 60 Battery 12V/38AH maintenance- free lead acid battery
Seating capacity (people) 3 Curb mass 460KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 45A 1.1KW controller
Accelerator Hanging , 5V Hall signals

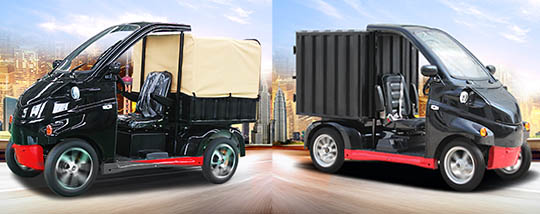

Specification : DFH-TM01 Logistic （物流款）
Dimensions(mm) 2421*1143*1527 Motor 60V/1.1KW
Driving mileage(km) 60 Battery 12V/38AH maintenance- free lead acid battery
Seating capacity (people) 1 Curb mass 460KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 45A 1.1KW controller
Accelerator Hanging , 5V Hall signals
Specification : DFH-TM01 Cargo
Dimensions(mm) 2421*1143*1527 Motor 60V/1.1KW
Driving mileage(km) 60 Battery 12V/38AH maintenance- free lead acid battery
Seating capacity (people) 1 Curb mass 460KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 45A 1.1KW controller
Accelerator Hanging , 5V Hall signals

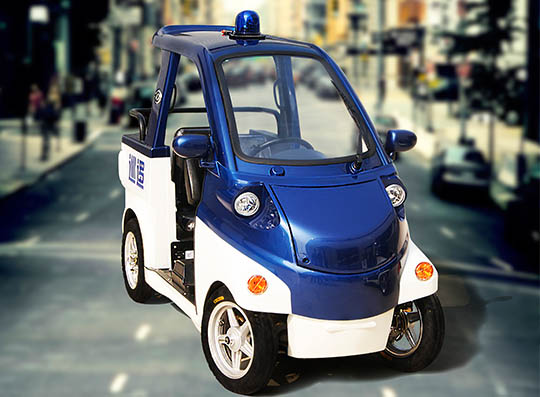

Specification : DFH-TM02 Patrol (1+1)（巡逻款）
Dimensions(mm) 2288*1143*1557 Motor 60V/1.1KW
Driving mileage(km) 60 Battery 12V/38AH maintenance- free lead acid battery
Seating capacity (people) 2 Curb mass 460KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 45A 1.1KW controller
Accelerator Hanging , 5V Hall signals
Specification : DFH-TM02 Endurance (1+1)
Dimensions(mm) 2288*1143*1557 Motor 60V/1.1KW
Driving mileage(km) 120 Battery 12V/38AH *2 maintenance- free lead acid battery
Seating capacity (people) 2 Curb mass 500KG
Climbing ability 15% Min. Turning radius(m) 3.5m
Tires 90/90-12 Max. Speed 28/27km/h
Chassis welded steel frame Body polymer plastic body
Rear axle the overall low noise bridge (high-gear differentials)
Braking system front wheel floating calipers brake / rear wheel hydraulic drum brakes
Suspension Front suspension -independent suspension system;
Rear overhang+ rear trailing arm rear axle, hydraulic damping system
Controller 60V/current limit 60A 1.1KW controller
Accelerator Hanging , 5V Hall signals
